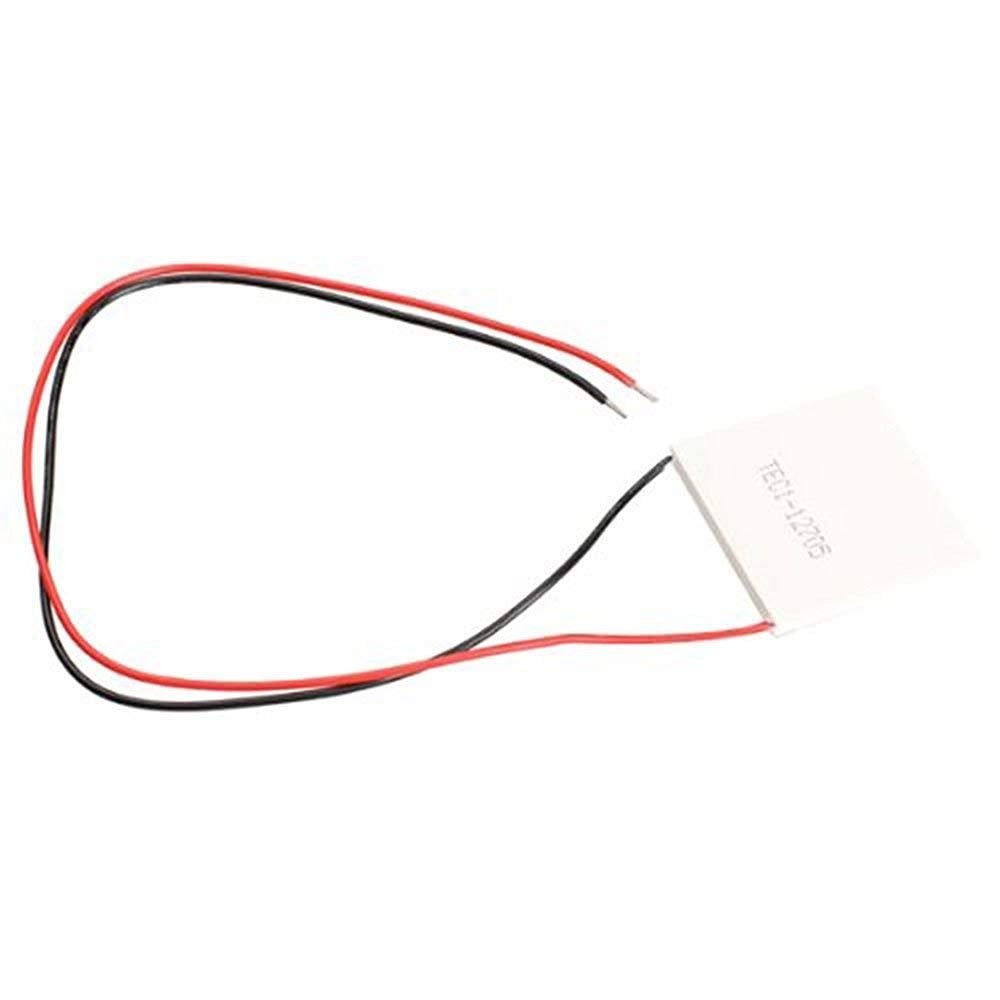

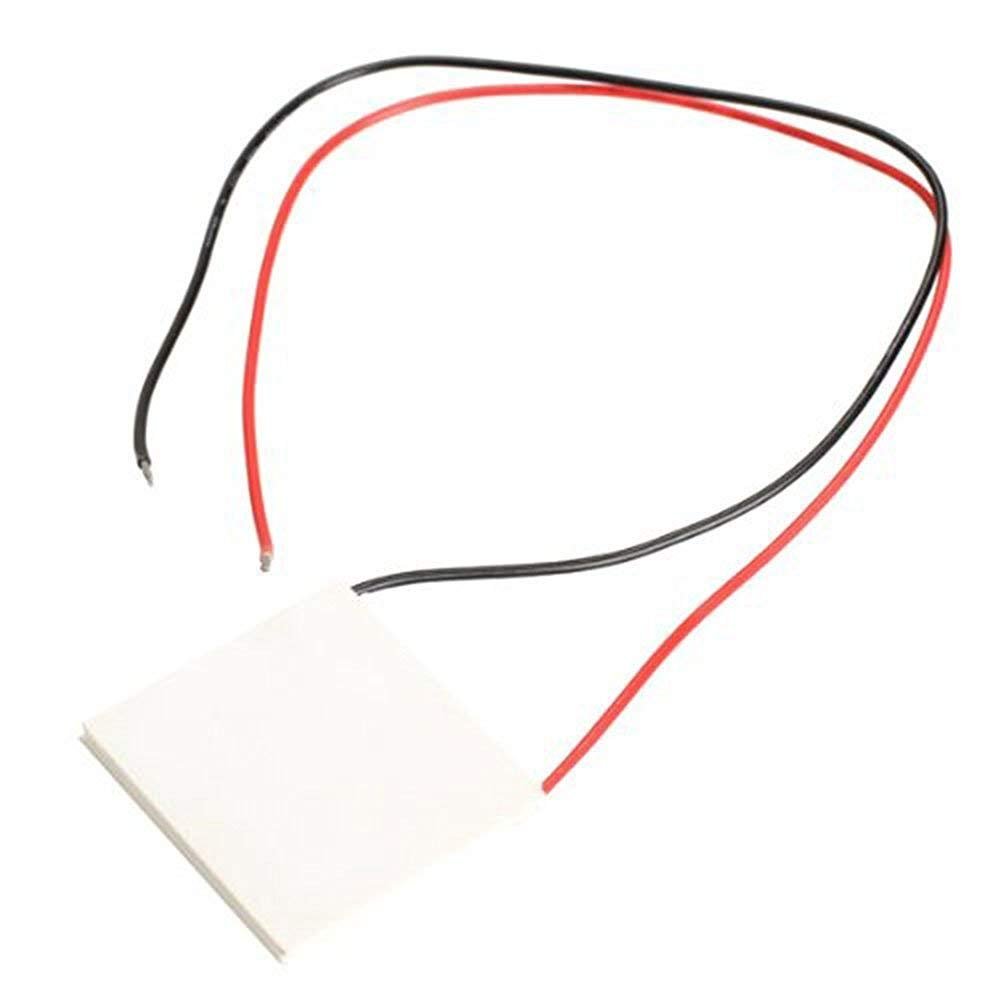

REES52 TEC1-12705 12V Heatsink Thermoelectric Cooler Cooling Peltier Plate Module 40X40MM

Price: ₹399.00
(as of July 11, 2026 – Details)

[ad_1]
Chip model: tec1-12705. Dimensions: 40 * 40 * 3. 8Mm. Component: logarithm of 127. Cooling power: qcmax 30w. Assembly pressure: 85n/cm2. Storage conditions: -40 to 60℃. Rated voltage: dc12v (vmax: 15. 5V). Maximum temperature: tmax (qc = 0): 60℃. Encapsulation process: standard 704 silastic seal. Operating current: Imax = 12 (rated voltage start-up). Wire size: lead length 100 5mm, rv standard wire, single head 5mm tin plated. Internal resistance: 2. 4 to 2. 7 ohm (Ambient temperature 23 1, 1khz ac test). Working environment: temperature range -55℃ to 83℃ (high ambient temperature will directly affect the cooling efficiency).
Chip Model: TEC1-12705.
Storage conditions: -40 ~ 60℃.
Rated voltage: DC12V (Vmax: 15.5V).
Encapsulation Process: Standard 704 Silastic Seal.
Internal resistance: 2.4 ~ 2.7Ω (ambient temperature 23 ± 1 ℃, 1kHZ Ac test).
